DENALI

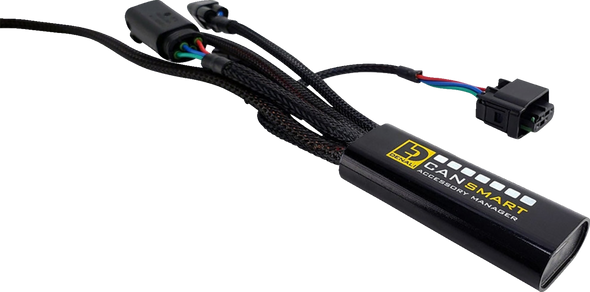

Denali Dialdim Controller - Lighting Dnl.Whs.20500
- SKU:
- 2120-1382
- UPC:
- 810005872850
- MPN:
- DNL.WHS.20500
- Condition:
- New
Frequently bought together:
Description
Integrates seamlessly with your vehicle's systems, offering intelligent flash features that enhance your visibility and safety on the road
Easy installation with included 7/8" handlebar mount
The controller housing and switch both feature a fully waterproof design with gaskets and o-rings at every joint to ensure hassle-free operation in outdoor environments
On/off & dim - Independently control two sets of lights on/off and intensity level using the single DialDim Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits
High/low sync - Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch
Stealth mode - A 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle's high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected
Cancel with turn signal - When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal
Flash as turn signal - When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals
Strobe with horn - When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn
Electronically fused circuits - Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped
Voltage display indicator - Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8 V
Low voltage cutoff - If the battery voltage drops below 10.8 V the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition -
