C.E. SMITH

Most trailer manufacturers use grade 5 screws and bolts for maximum safety & security. Grade 5 hardware has a higher tensile strength than the grade 2 hardware usually found in hardware stores...

Wheel bolts. * 1/2" x 20 Fine thread * 13/16" Hex head * Total length = 1-5/8" (Thread length = 7/8") * Sold each (bulk) * Also available in packs of 5 (# 230012)

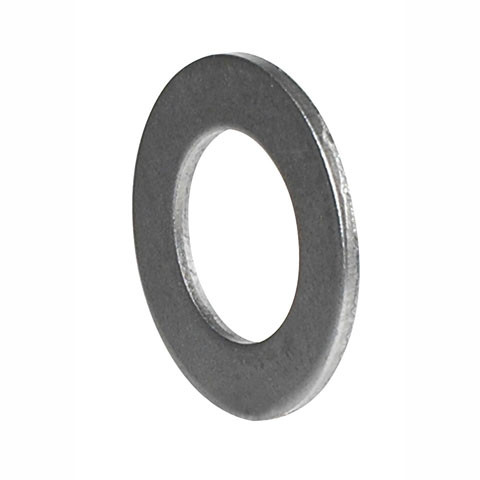

Axle spindle washers.* 1" I.D. standard round * Sold each (bulk)

Yellow zinc coated3/8"-16 / SquareID: 1.67"Length: 3-3/8"Sold Each (Nuts & washers sold separately)

7/16" S-hook for trailer safety chain Zinc 5000 lb. maximum load capacity Sold each

SPRING SHACKLE1/4" plain finish steelUsed on double eye springs4-3/8"L x 1-1/4"WHole centers: 3-1/4"Bolt hole size: 9/16"Sold Each

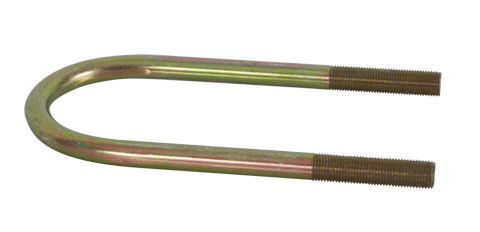

Yellow zinc coated1/2"-20 / RoundID: 3.15"Length: 7"Sold Each (Nuts & washers sold separately)

Fluted shackle bolts stay secure and are an excellent choice for spring hanger bracketsCase-hardened Grade 5 steel3" x 9/16" - 18 NFTExposed thread: 3/4"13/16" Hex HeadSold Each (Nuts sold...

AXLE TIE PLATE - FLAT *  Galvanized 1/4" steel *  A:  4.0" *  B:  2.63" *  C:  2.38" *  D:  3.81" *  Accepts 1/2" U-bolt

Fluted shackle bolts stay secure and are an excellent choice for spring hanger bracketsCase-hardened Grade 5 steel3-1/2" x 9/16" - 18 NFT13/16" Hex HeadSold Each (Nuts sold separately #CS10864)

Zinc plated7/16"-14 / SquareI.D. 3-1/8"Length: 3"Sold Each (Nuts & washers sold separately)

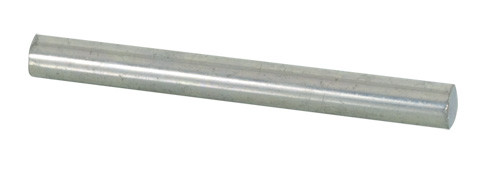

Zinc plated roller shaftsLength: 4-5/8"Diameter: 1/2"Sold each
